Item Number | 18109331-231

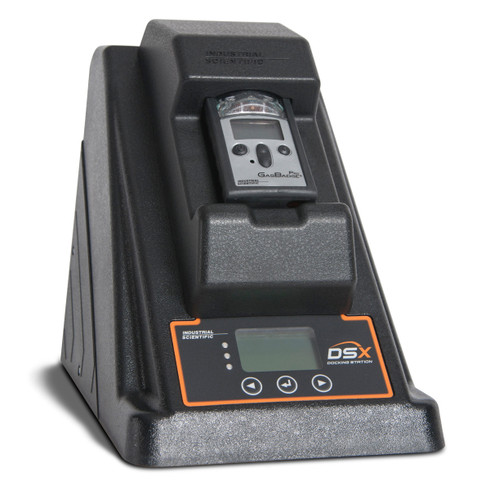

Industrial Scientific DSX-L Local Server Edition 3 Port Docking Station for GasBadge Pro Gas Monitor
Whats in the box:
- DSXL 3-Port Docking Station for GasBadge Pro
- US/ North American Power Cord
- DSX-L Software
- Two iGas Reader and Cables
DSX-L Administrators Guide Download
DONT FORGET Your Calibration Gas, & your iGas Regulator/s!
- Bump test and calibration schedules can be tracked and set to be performed automatically, ensuring that instruments are ready for use prior to the start of a shift.
- Server based data storage provides peace of mind with automatic file back-up, and easy recovery in case of unexpected data loss.
- Effortlessly manage your fleet, data, and software updates from an internal server.
- Email alerts and notifications provide information on worker exposure and instrument usage, as well as instrument service needs.
Physical Specifications
- Warranty: Two-year warranty – DSX (Standalone) and DSX-L (Local Server)
- Guaranteed For Life™ Program** – DSXi (Cloud-connected)
- Instruments supported: GasBadge Pro Series
- Dimensions: GasBadge Pro: H: 22.7cm (8.92"); W: 16.9cm (6.65"); D: 27.3cm (10.75")
- Gas inlets: 3-Port Version: One ”fresh” air port, two calibration gas ports
- Pump flow rate: 1.2 SCFH (550 mL / min)
- Communication: 10 / 100 Ethernet support, RJ-45 Category 5 Connection
- Operating temperature range: 0 ºC to +50 ºC /32 ºF to 122 ºF
- Operating humidity range: 0% to 80% relative humidity (RH) up to 30ºC (86ºF), decreasing linearly to 50% RH at 50ºC (122ºF)
- External power supply ratings: Supply voltage: 100-240 VAC/12 VDC, Freq. range: 50-60 Hz, Current rating: 5A
